UPDATE (Nov 2021):

Sugarmate has dropped support for Dexcom users, therefore this guide will help you setup Nightscout and link it with Dexcom servers. There is a special section below for Dexcom users and how to setup the special Share2Nightscout bridge plugin.

What is Nightscout?

Nightscout is an open source tool that helps people suffering from Type 1 Diabetes to continuously monitor their blood glucose (BG). Their real-time BG data are uploaded from their CGM (Continuous Glucose Meter) to the cloud and presented in a personal website, smartwatch, smartphone apps and widgets. This article is a Nightscout setup guide that will help you build your personal Nightscout site in around 30mins.

How does Nightscout work [Infographic]

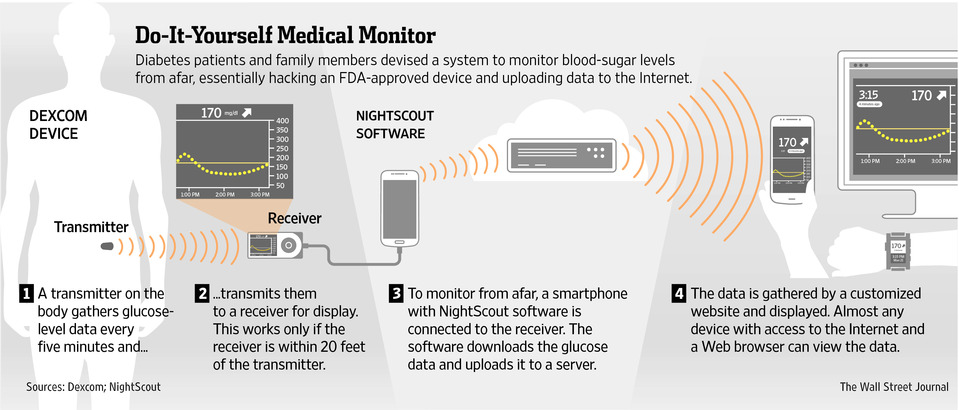

In this infographic from “The Wall Street Journal” we can briefly see how Nightscout works using a Dexcom device.

How does Nightscout work
Infographic: How does Nightscout work? – Source: Wall Street Journal (09/26/2014)

How to setup Nightscout?

Time needed: 30 minutes

A comprehensive step-by-step guide on how to setup Nightscout if you are a new user.

  1. Create a GitHub Account

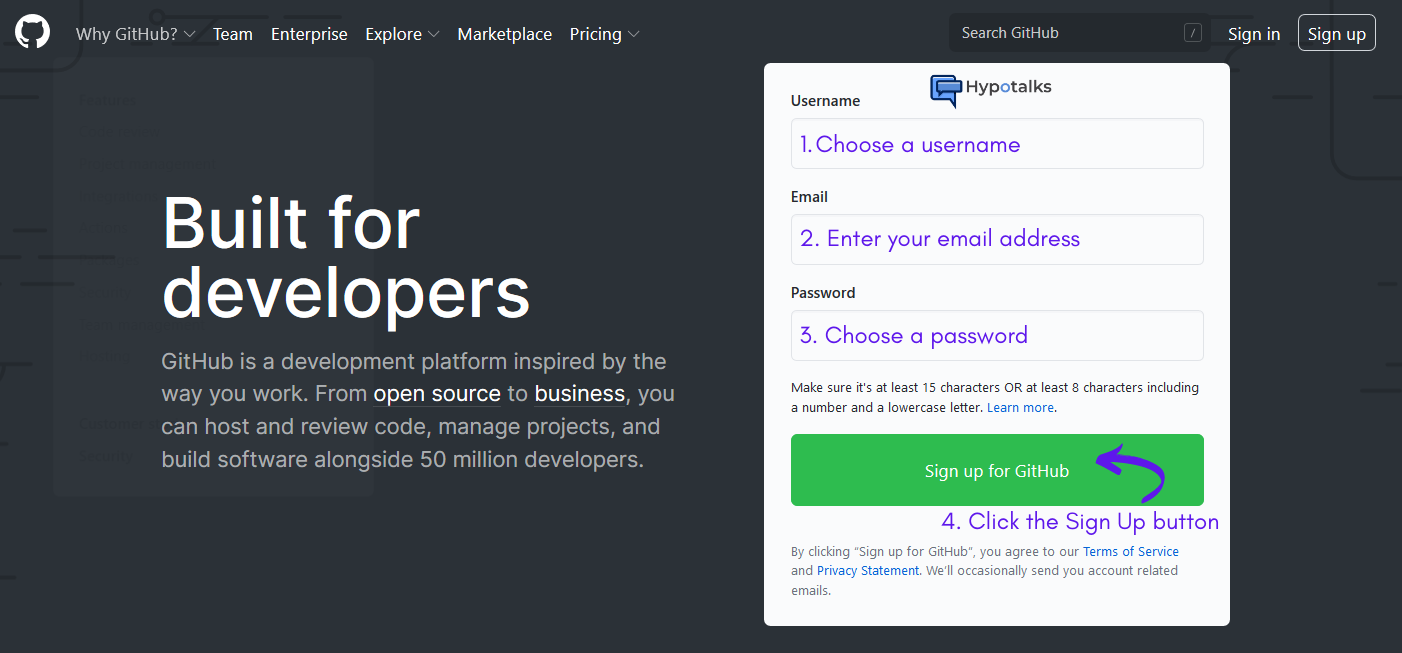

    a. Navigate to GitHub.com. Fill in your email, your desired username and password and click “Sign Up for GitHub”.

    Nightscout - Create a GitHub Accountb. Verify your account by solving the puzzle. After verification is complete, click “Join a free plan”.

    Nightscout - Verify GitHub Accountc. Select the options that match your profile (not important for the setup, it’s not mandatory to click any) and click “Complete setup” button.

    Nightscout - GitHub Account Complete Setup
    d. In order for the account to be activated, you should verify your email address.

    Hypotalks - GitHub verification email
    e. Go to your inbox, find the email from GitHub and click the embedded verification link.

    Hypotalks - Click email verification link

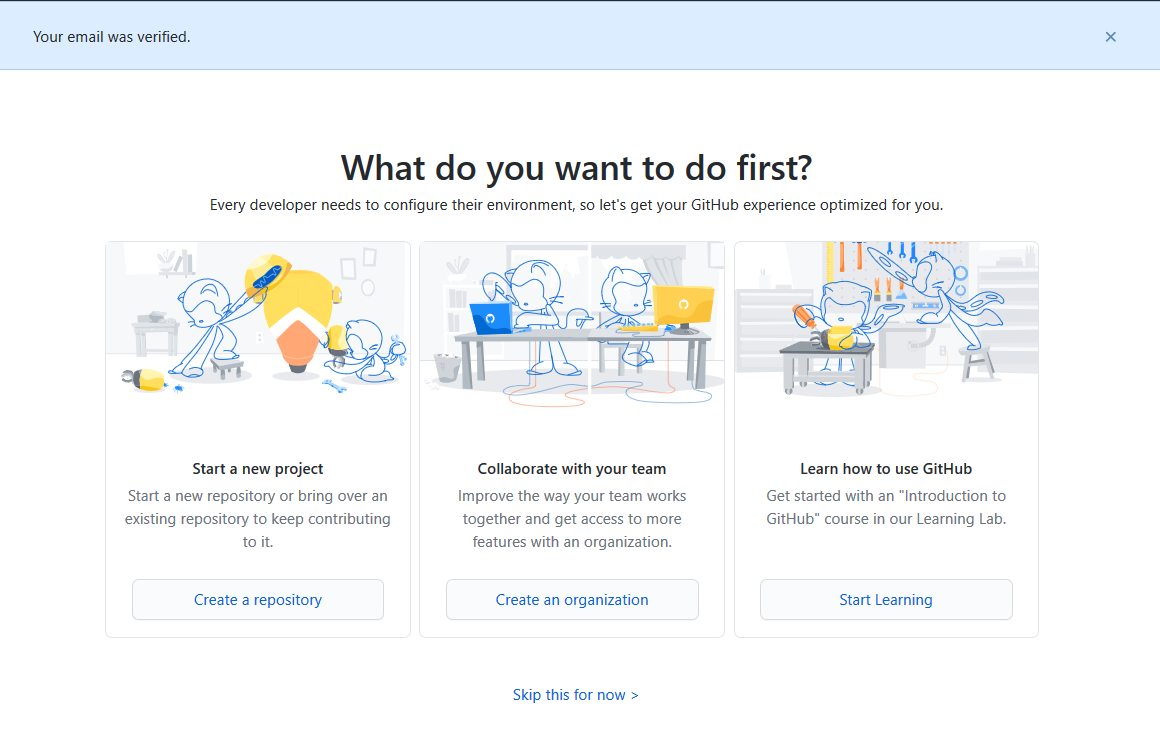

    f. Your email is now confirmed. Skip the next step.

    Nightscout - GitHub account created

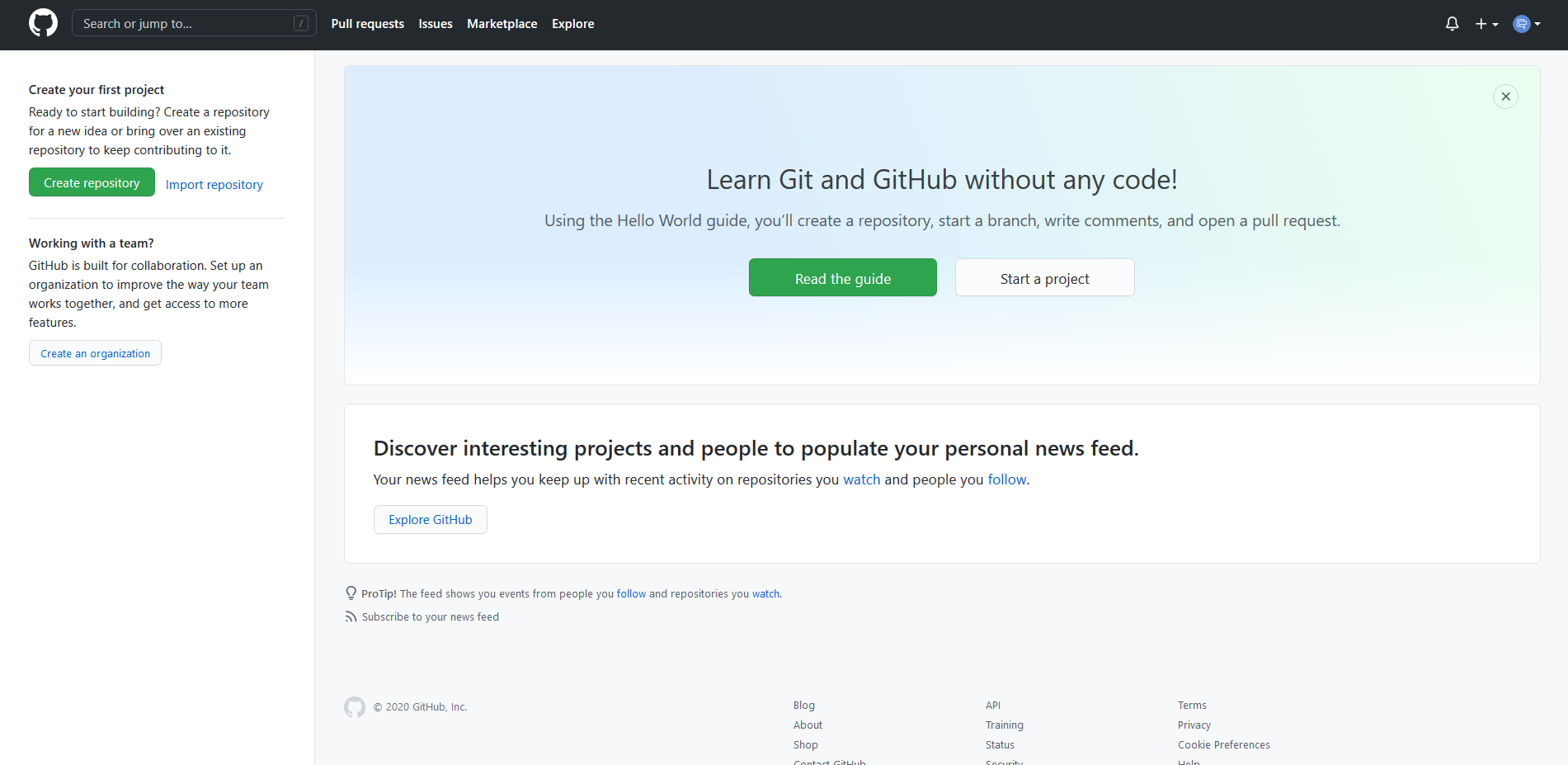

    g. Your GitHub account is now created and active. Your GitHub homepage should now look like this.

    Nightscout - GitHub account created
    Your GitHub account is now ready. Please leave the browser tab open.

  2. Create a Heroku account

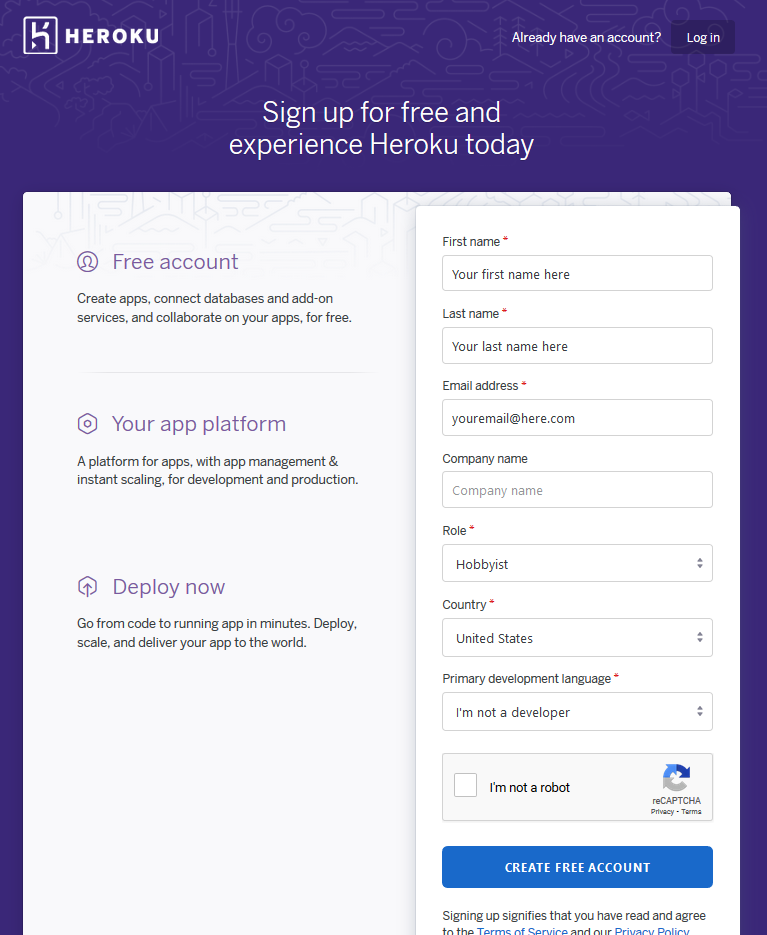

    a. On another browser tab, navigate to https://signup.heroku.com/ to create a new Heroku account. Fill in the mandatory fields (*) and click “CREATE FREE ACCOUNT” button.

    Nightscout - Heroku account creation

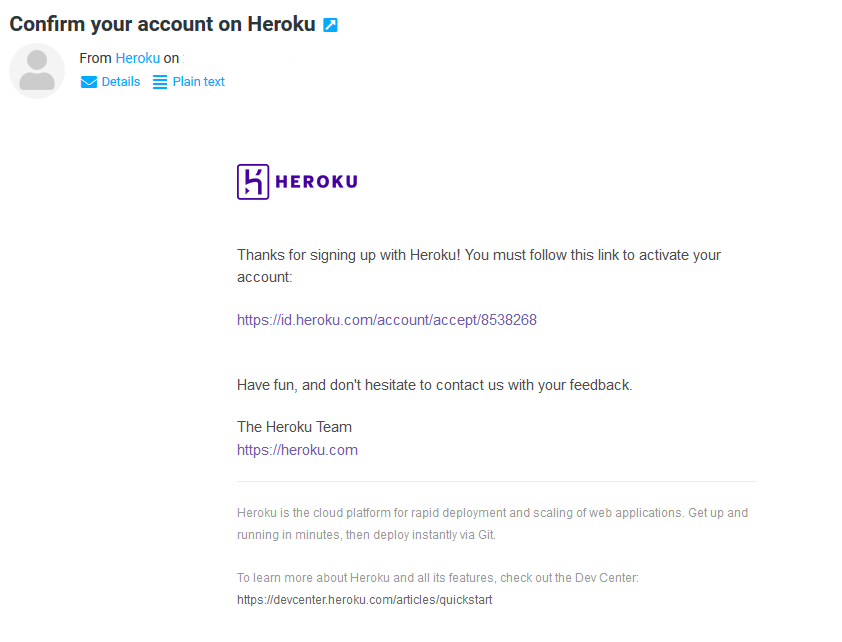

    b. Verify your Heroku account. Go to your email inbox and check for an email verification from Heroku. Click on the verification link.

    Hypotalks - Heroku account verification

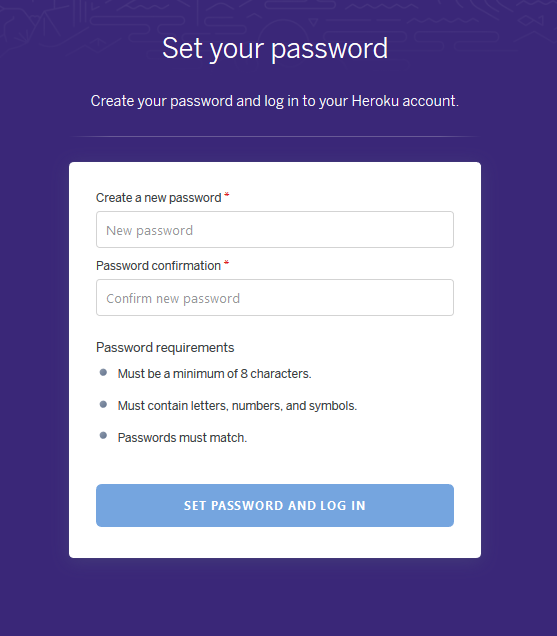

    c. Your Heroku account is now activated. Setup your desired password and click “SET PASSWORD AND LOGIN” button.


    Nightscout - Set Heroku password

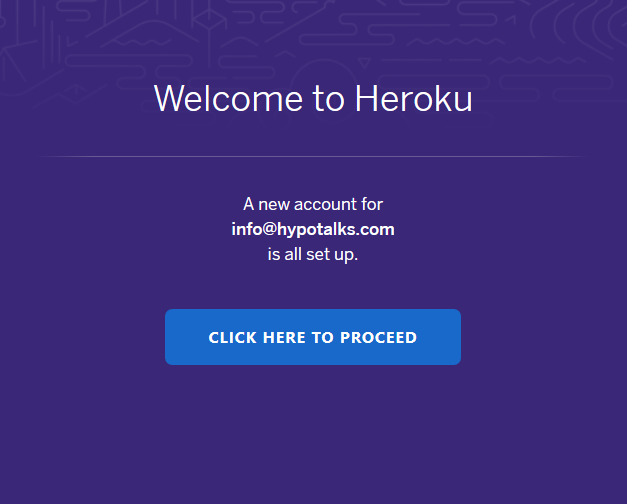

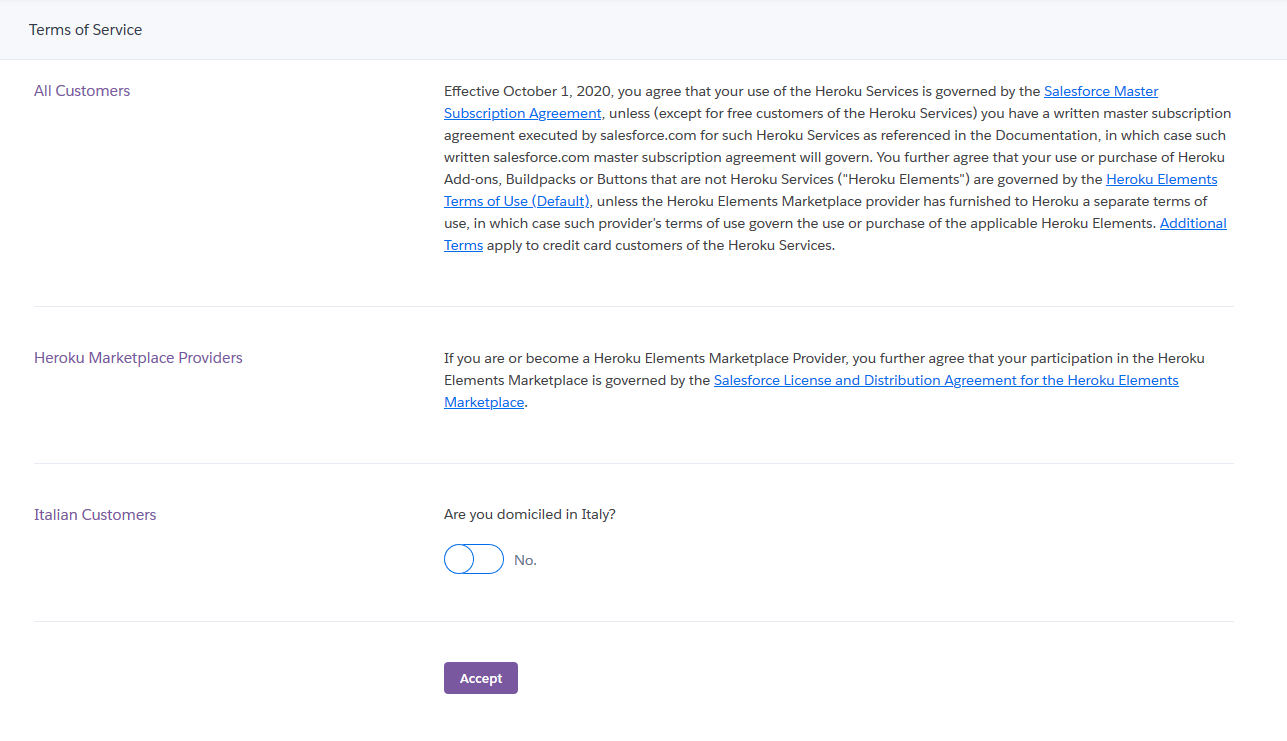

    d. If this message appears, your Heroku account is ready. On the next page accept the Terms of Service.

    Nightscout - Heroku account created

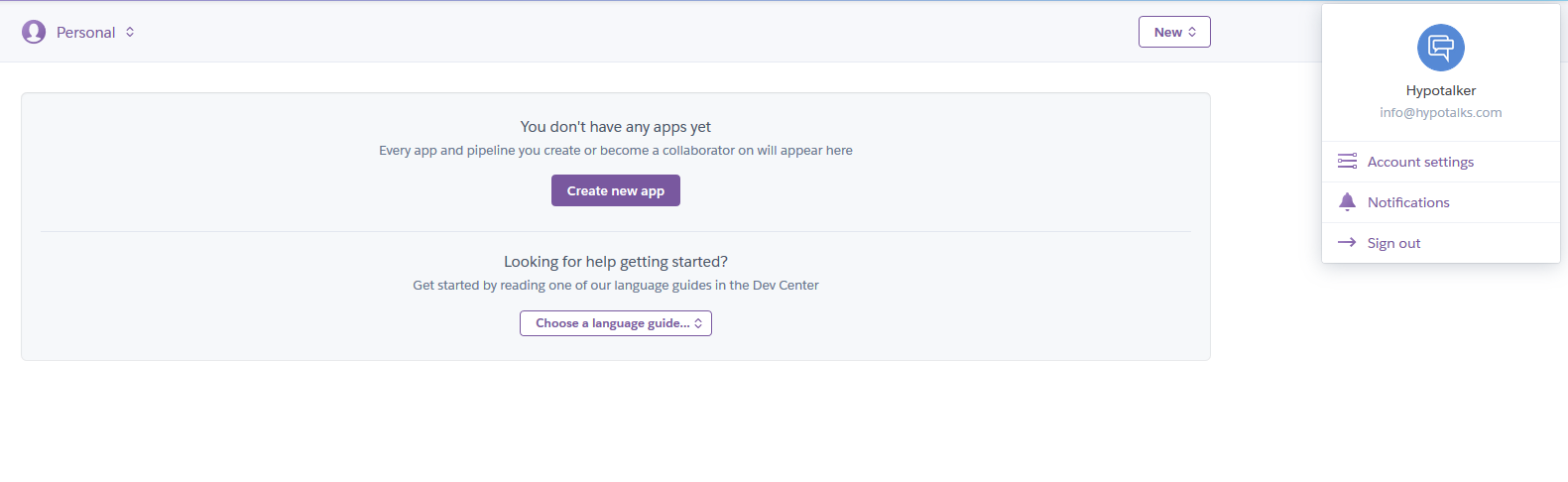

    Hypotalks - Heroku accept terms of servicee. Navigate to Heroku “Account Settings” from the top right menu.

    Nightscout - Heroku Account Settings

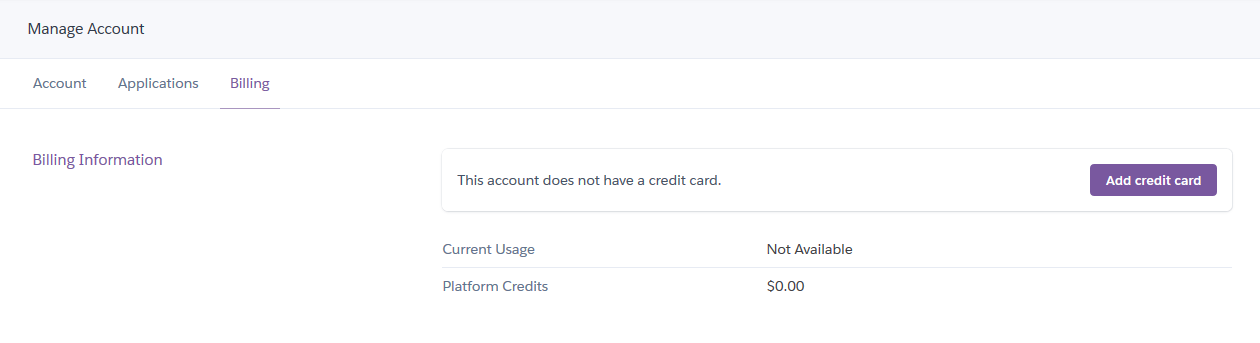

    f. In order to use Heroku services you should setup a payment method. Therefore you should add a valid credit card by clicking the “Add credit card” button.
    NOTE: This is only for verification purposes. You will only be charged if you use Heroku billable features. A typical Nightscout setup uses non-billable features.

    Nightscout - Heroku billing settings

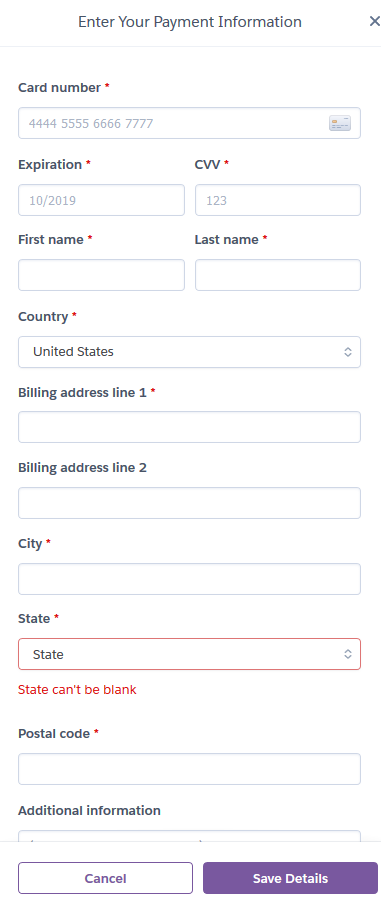

    g. Add your valid credit card details and click on the Save Details button.

    Nightscout - Heroku account billing method
    Your Heroku account is now ready. Please leave the browser tab open.

  3. Create an Atlas account.

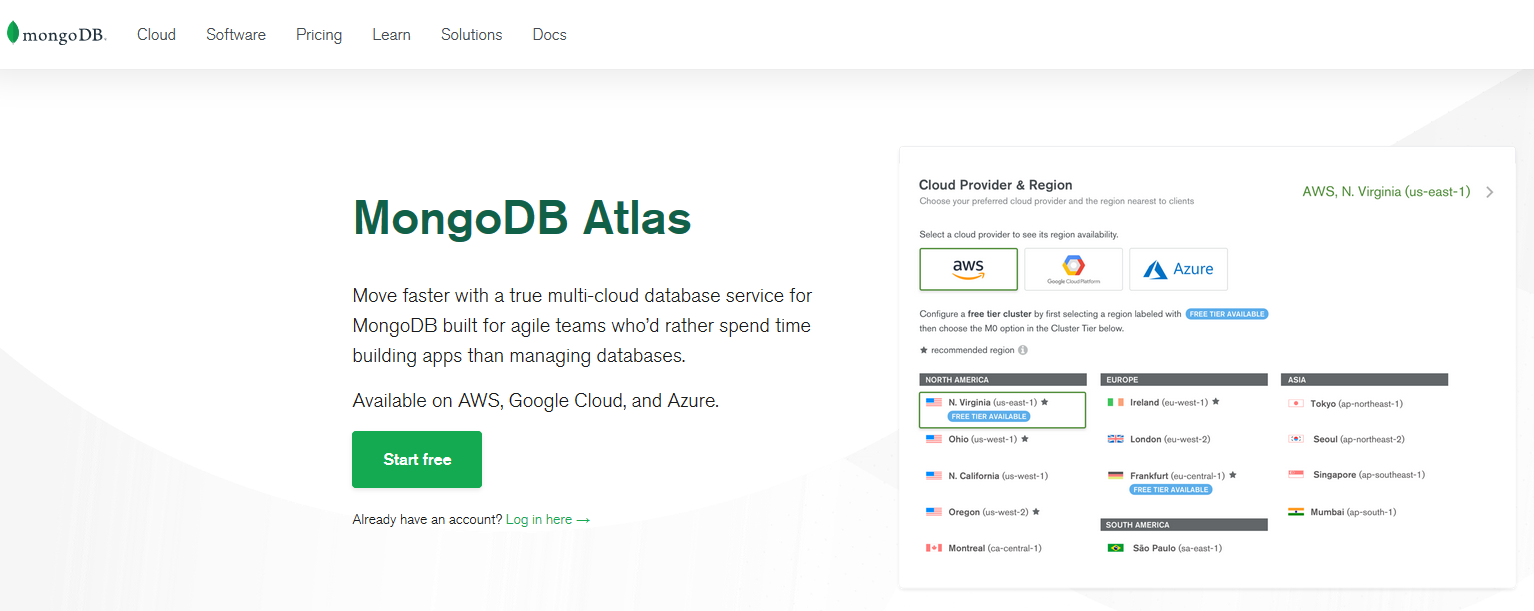

    a. Open another browser tab and navigate to MongoDB Atlas. Click the Start Free button on the homepage.

    Nightscout - Atlas account creation

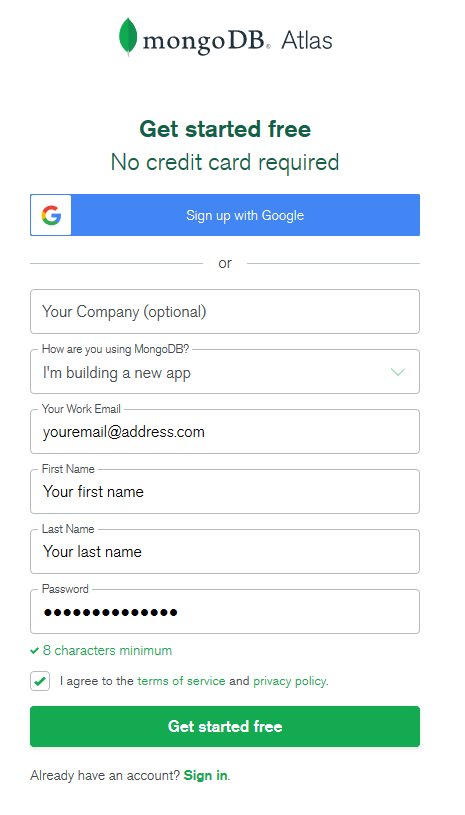

    b. Enter your details, accept the terms and click on “Get started free” button.

    Hypotalks - Atlas account creation details

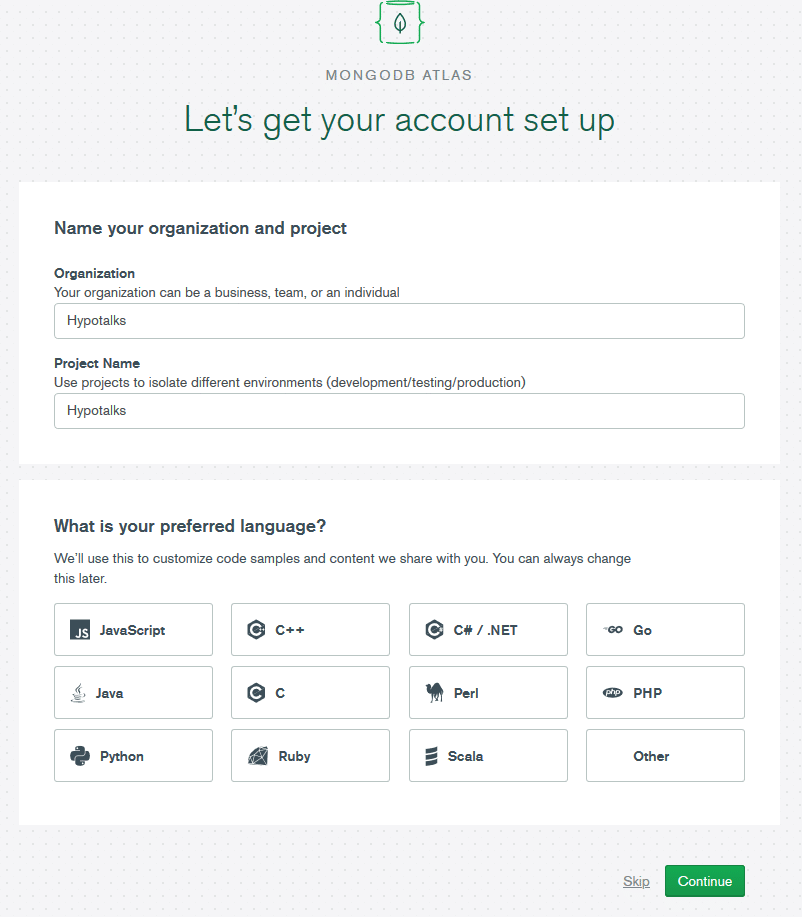

    c. You may skip the next step below by clicking the Skip button.

    Nightscout - Atlas account setup

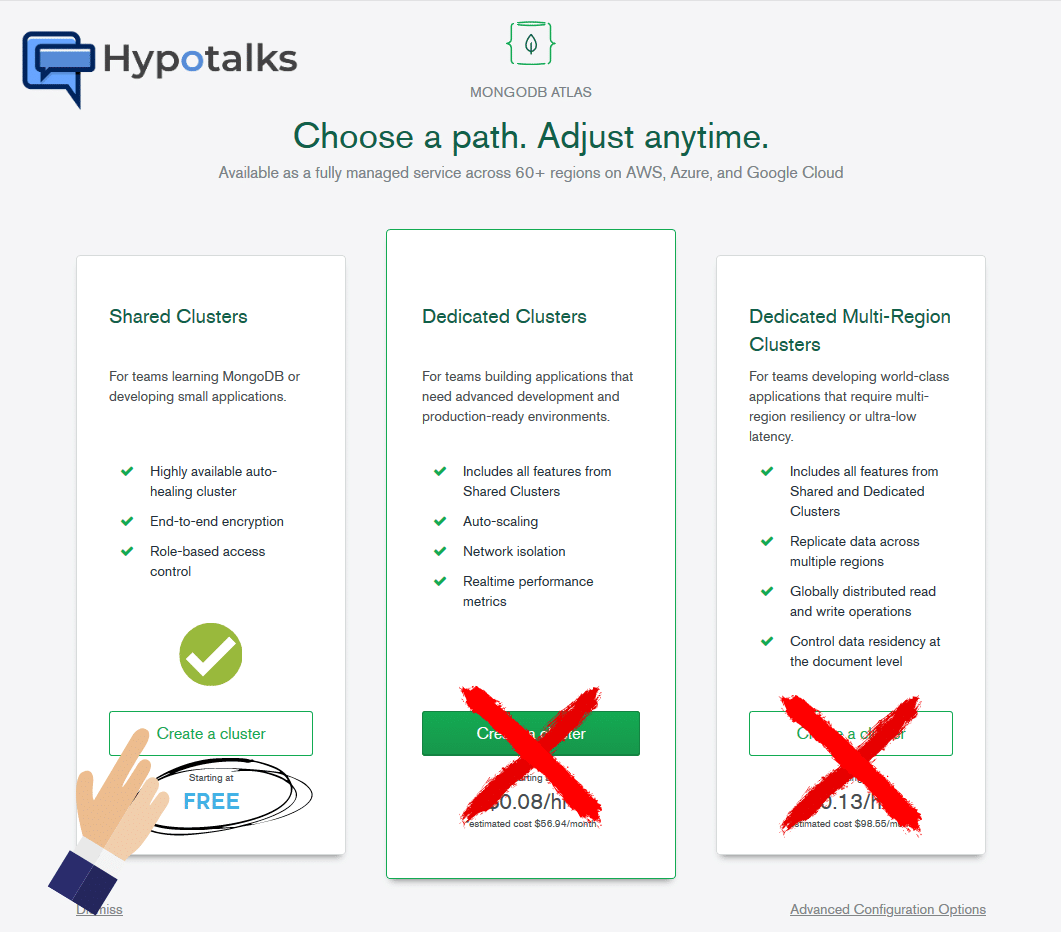

    d. Click the button “Create a cluster” in the column “Shared Clusters“.

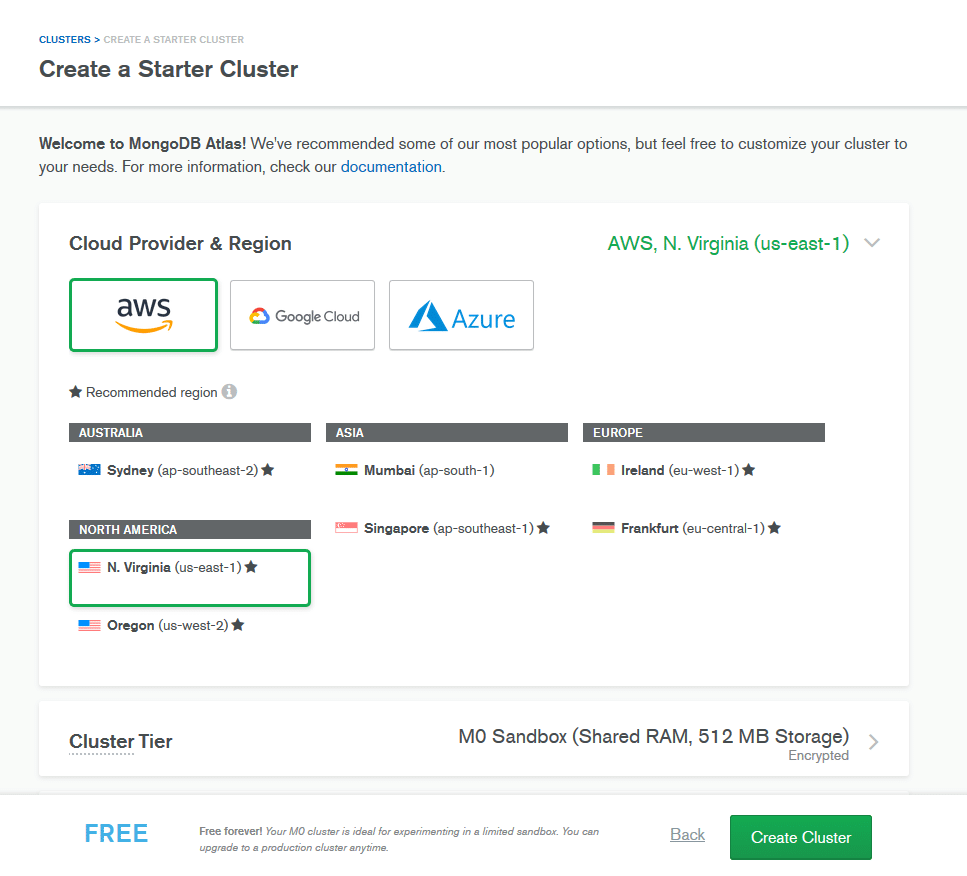

    Nightscout - Atlas account path selectione. Leave the default selections and proceed by clicking the Create Cluster button on the bottom right of the page.

    Nightscout - Atlas account default path selection

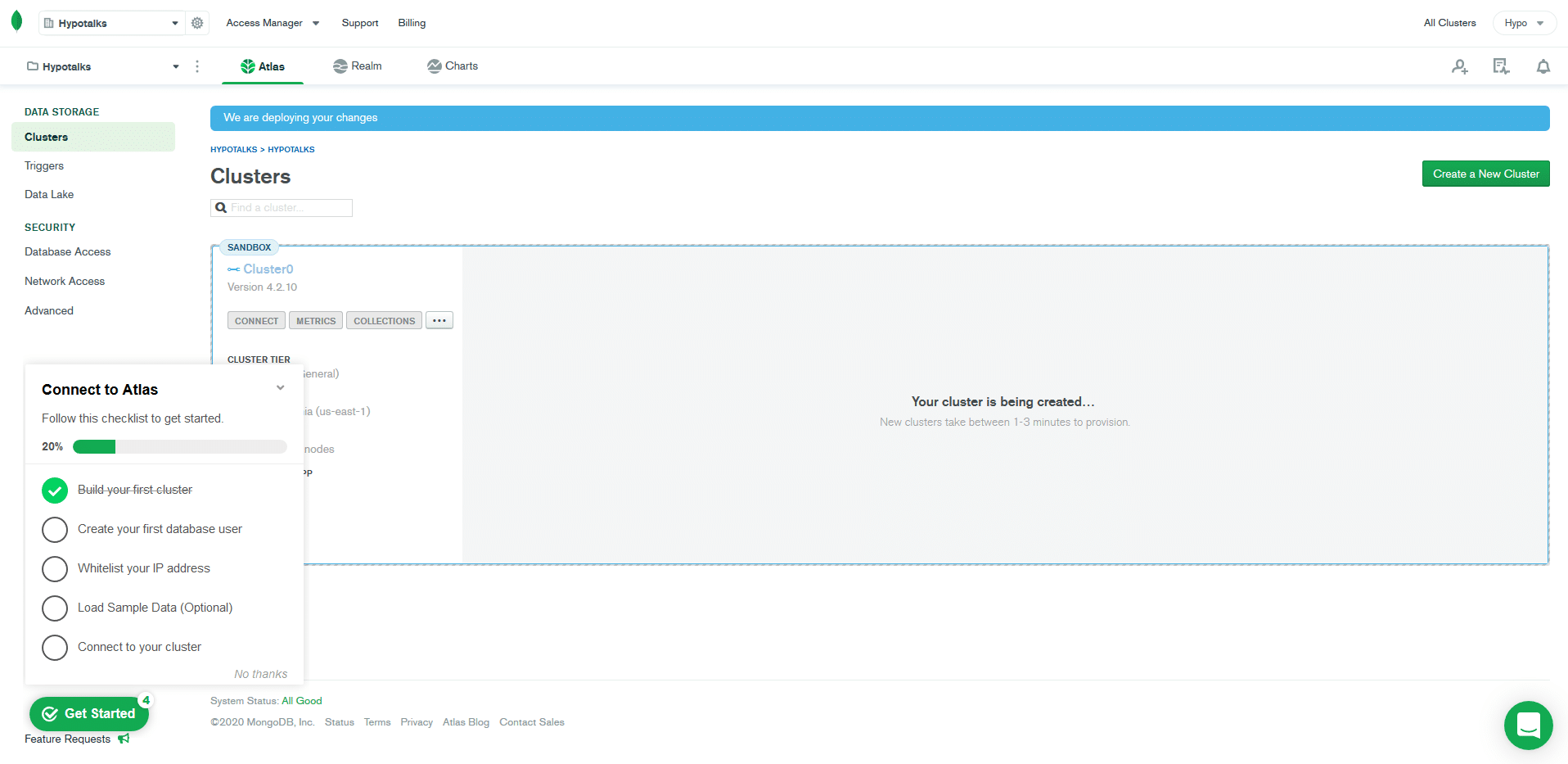

    f. Your cluster is being created. This process takes a few minutes so please be patient.

    Nightscout - Atlas account cluster creation processg. Click on CONNECT button, after the cluster creation process has finished.

    Nightscout - Atlas account cluster connection

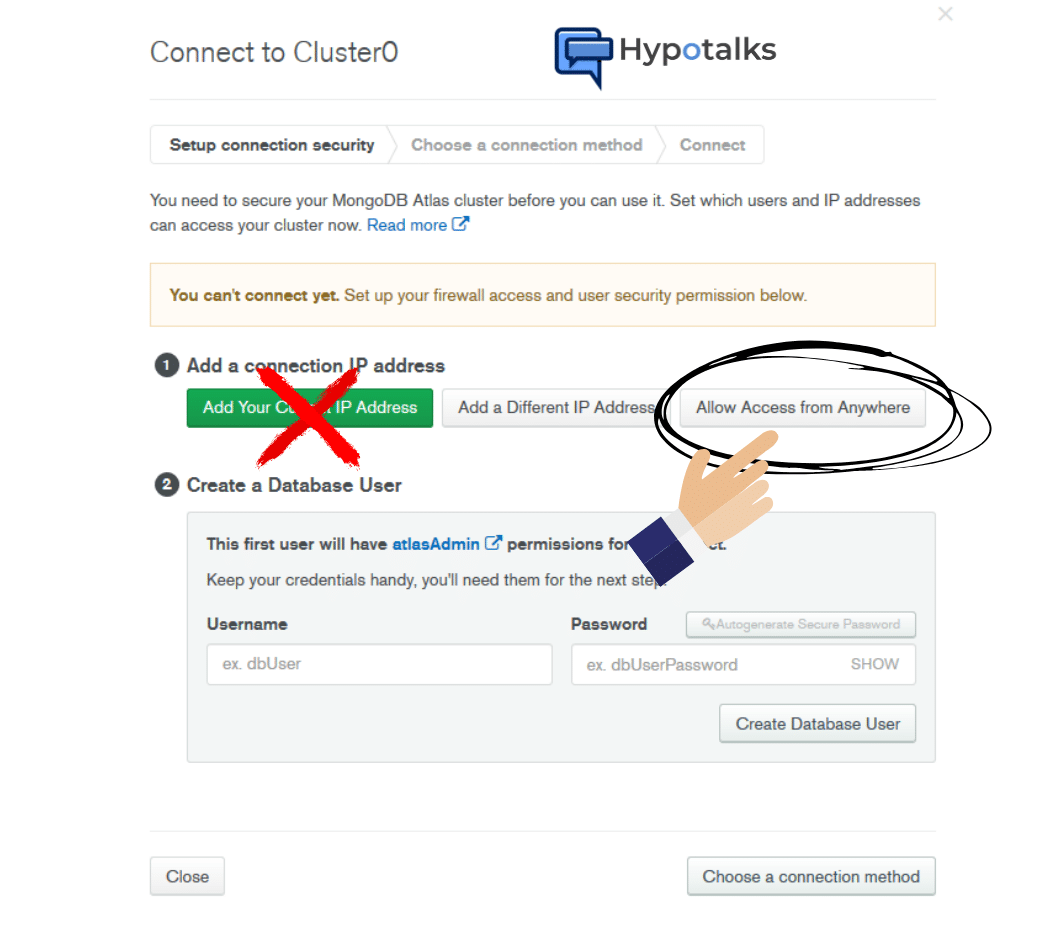

    h. Click on Allow Access from Anywhere.

    Nightscout - Atlas account cluster access

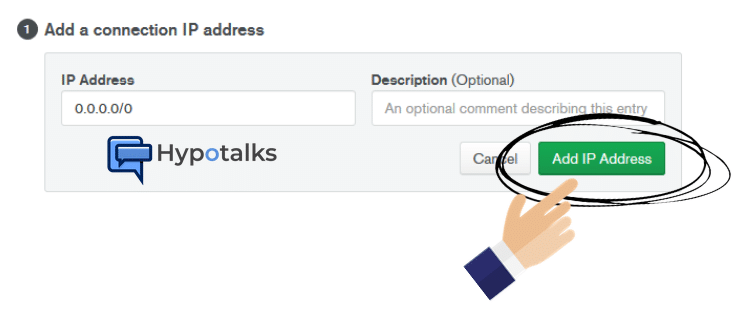

    i. Click on Add IP Address button.

    Nightscout - Atlas account cluster access IP

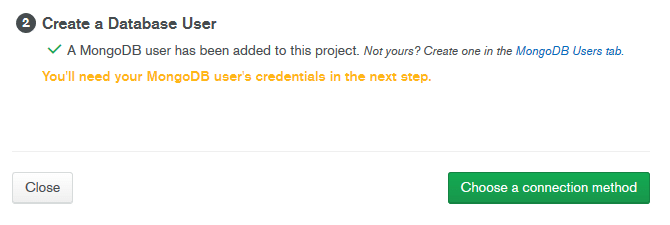

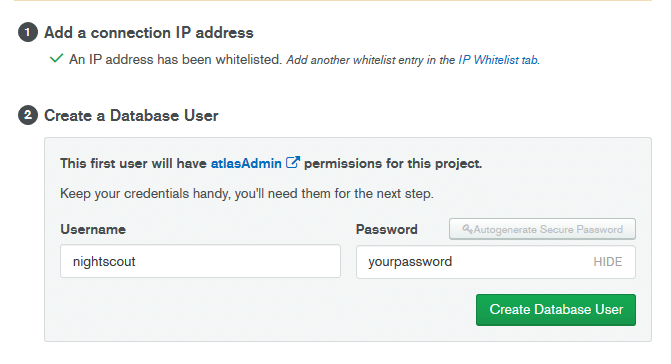

    j. Create a database user. Enter your desired database username and your desired database password. Take note of them as you will need them later on. Click on the Create Database User button when finished and then click the Choose Connection Method.

    Nightscout - Atlas account database user creation
    Nightscout - Atlas account databaseconnection method

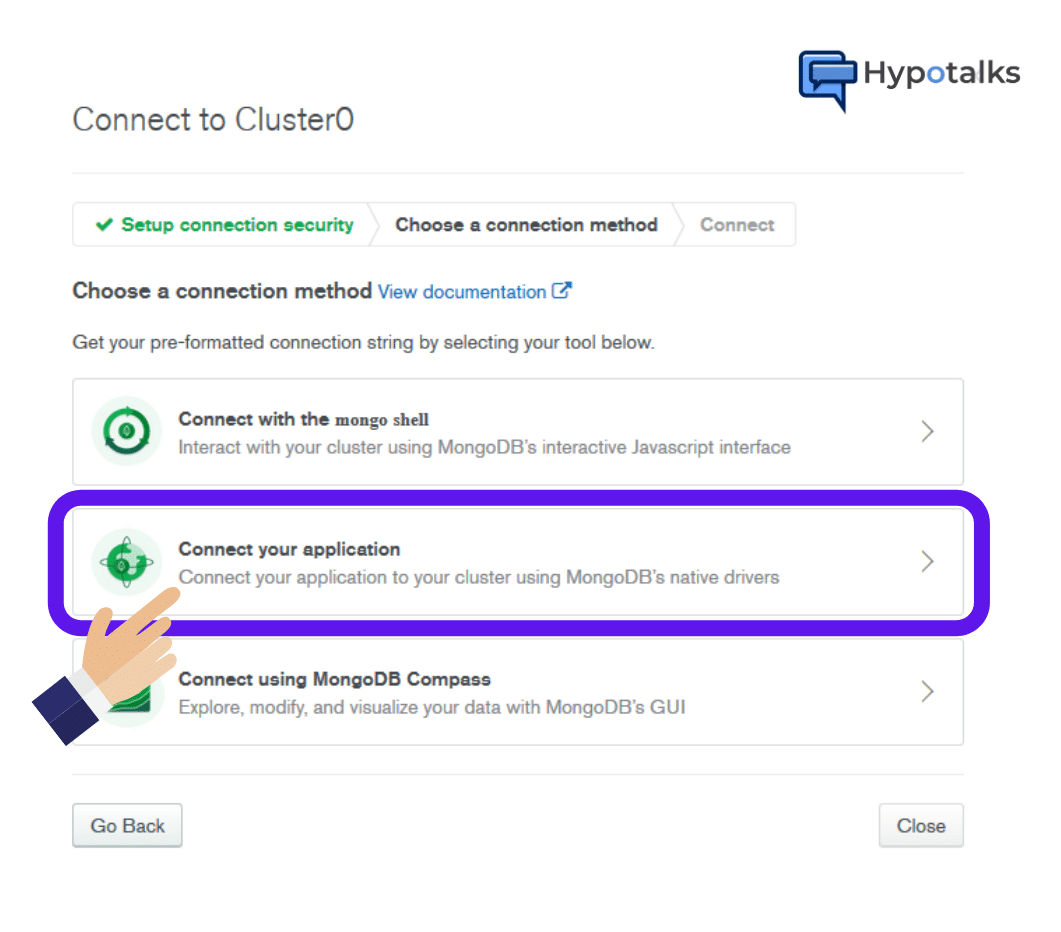

    k. Choose “Connect your application

    Nightscout - Atlas account database connection method setting

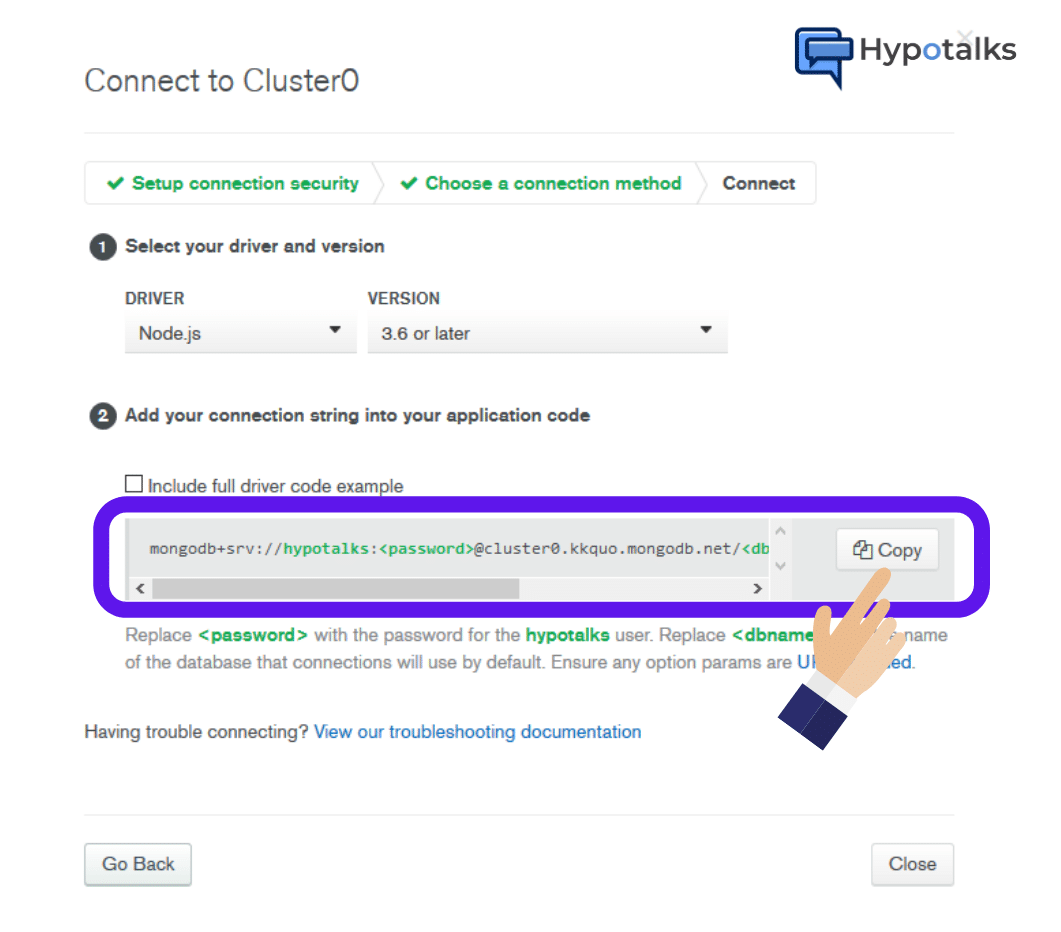

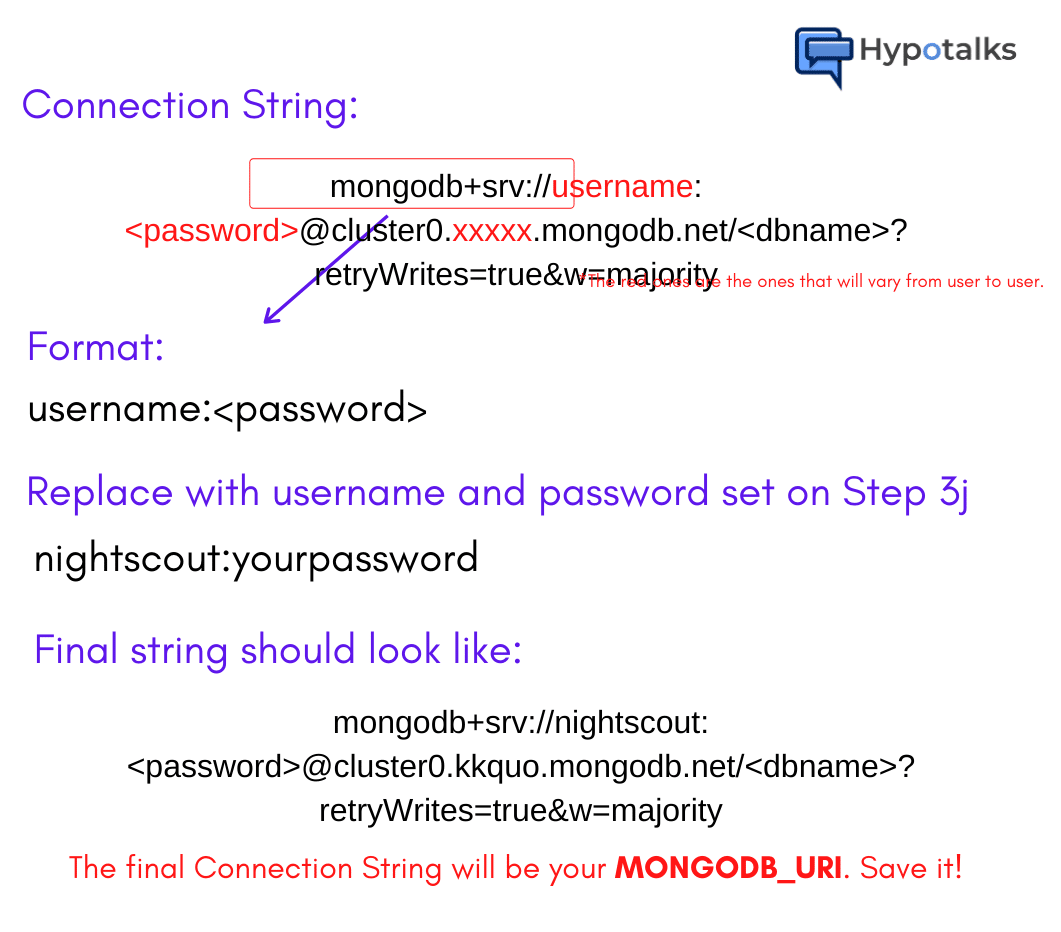

    l. Copy the connection string by clicking the Copy button. Paste the string on a notepad and follow the guidance below in order to replace the username and password on the string with the ones that you have set on step 3j above.

    Nightscout - Atlas account database connection string
    Nightscout - Atlas account connection string transformation
    NOTE: The final Connection String will be your MONGODB_URI. Save it for later use!

  4. Fork cgm-remote-monitor from Nightscout’s GitHub repository and deploy to your Heroku

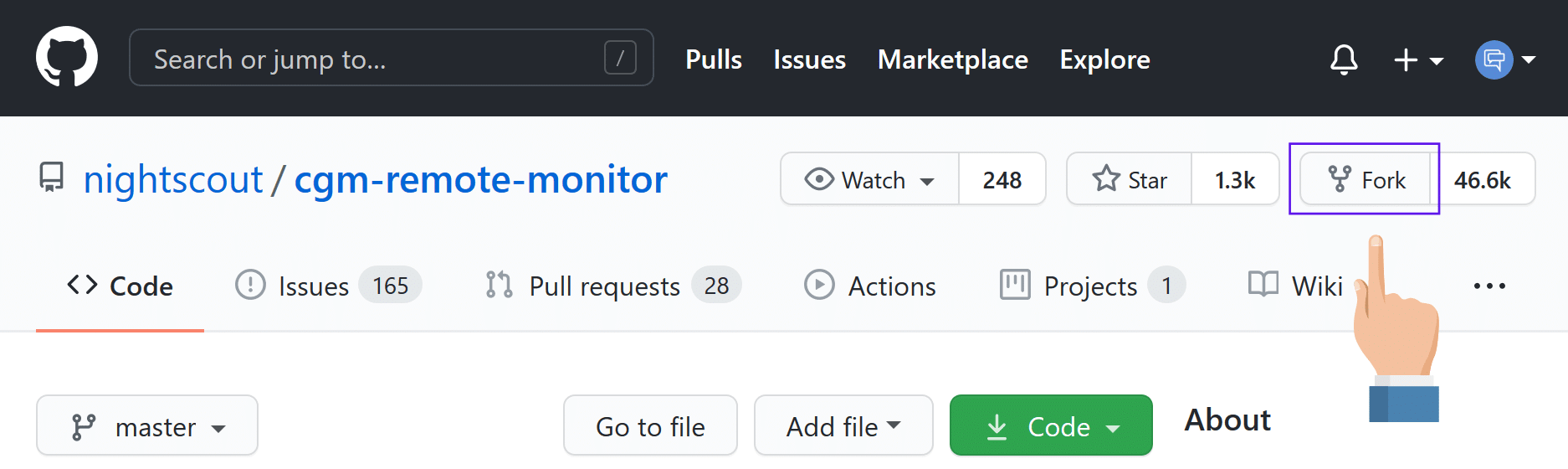

    a. Navigate to https://github.com/nightscout/cgm-remote-monitor. Ensure that you are logged in to GitHub. Click on the Fork button.
    Nightscout - GitHub fork

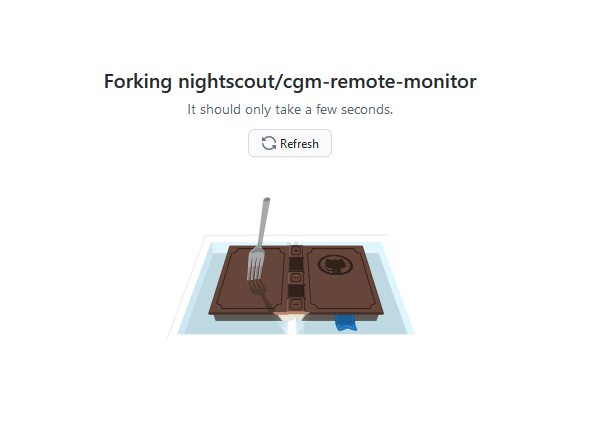

    b. Please wait until forking is finished.

    Nightscout - GitHub forking
    c. Scroll down and click “Deploy to Heroku” button.

    Nightscout - GitHub deploy to Heroku

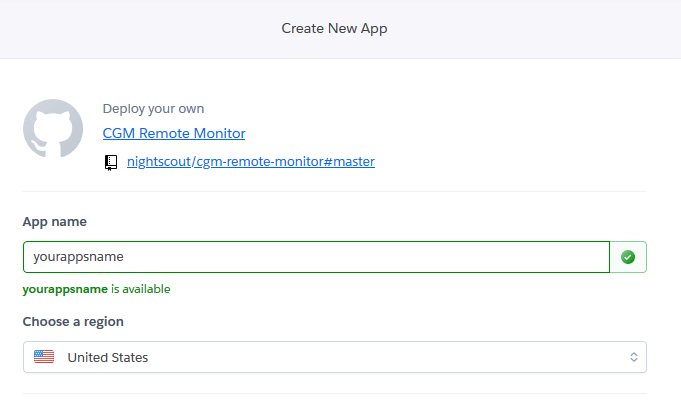

    d. Choose an app name for your Heroku site. Choose something that you will remember as it will be part of the URL you will be using to enter your nightscout site.
    For example the URL format will be: https://yourappsname.herokuapp.com, so choose something easy to remember and type.

    Do not change the region on the field below.

    Nightscout - Heroku appname setting

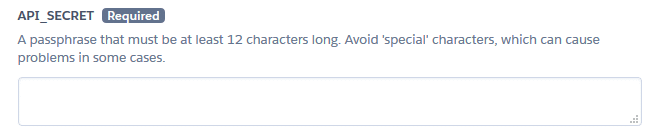

    e. Scroll down until you find API_SECRET. This is required to continue and will be your Nightscout password. A passphrase that must be at least 12 characters long. Avoid ‘special‘ characters.

    Nightscout - Heroku API_SECRET setting

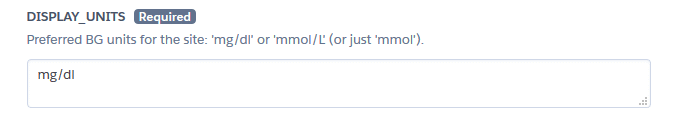

    f. Set the DISPLAY_UNITS you will be using to display your BG. Values can be either mg/dl or mmol.

    Nightscout - Heroku DISPLAY_UNITS

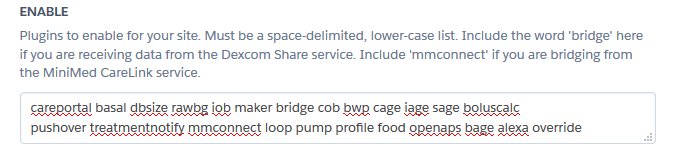

    g. Set the ENABLE values. These are various plugins that will add more features to your Nightscout site. These will be documented in detail on another article. For now you can add all of them. Simply copy-paste the following line.

    careportal basal dbsize rawbg iob maker bridge cob bwp cage iage sage boluscalc pushover treatmentnotify mmconnect loop pump profile food openaps bage alexa override

    Nightscout - Heroku plugins ENABLE
    NOTE: Enabling all plugins does not mean that all of them will work by default. Some of them will, but some of them need further configuration.

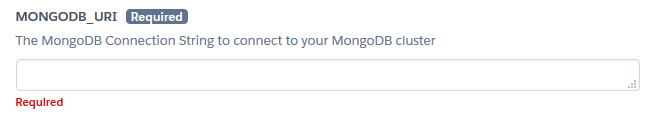

    h. Copy the connection string that you have created in step 3l above in the MONGODB_URI field. Don’t paste the URL below, as this is an example. You should replace the parts in red color with the correct ones that your string has.
    Example URI:
    mongodb+srv://yourusername:yourpassword@cluster0.xxxxx.mongodb.net/?retryWrites=true&w=majority

    Nightscout - Heroku MONGODB_URI

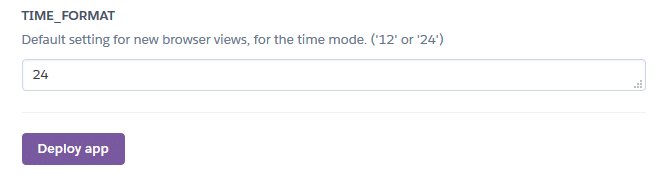

    j. Deploy app by clicking the respective button.

    Nightscout - Heroku Deploy App

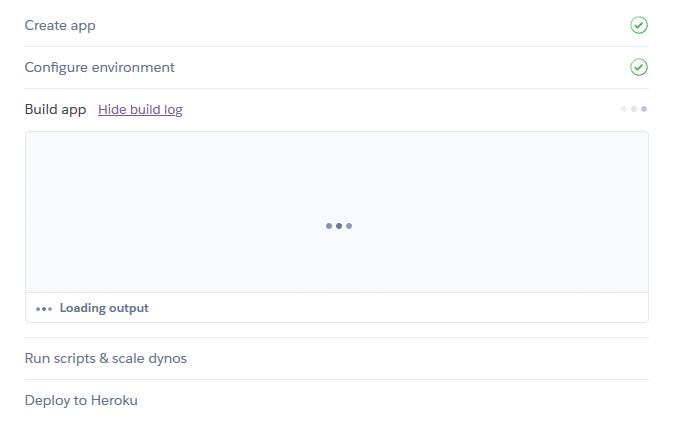

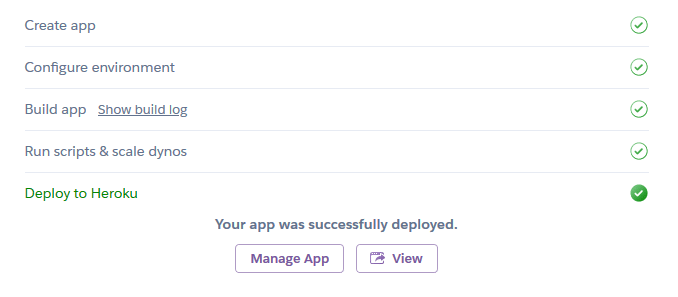

    k. Exercise your patience as the progress might take a few minutes. Once the deployment has finished click the View button.

    Nightscout - Heroku Deploy App progress

    Nightscout - Heroku Deploy App progress finished
    l. For Dexcom users you have to connect Nightscout with Dexcom servers in order to pull the data.

    Please follow the steps below:
    1. Go to Heroku
    2. Choose your app you have just created.
    3. Click the gear icon.
    4. Select Reveal Config Vars button to reveal Heroku variables.
    5. Find ENABLE and add in the values next to it the word bridge, in order to add the bridge plugin. You have to click the pencil icon to enable editing. This will eventually bridge Nightscout with your Dexcom Share.
    6. Find BRIDGE_USER_NAME and add as a value your Dexcom username (the one you use for Dexcom account, Clarity etc)
    7. Find BRIDGE_PASSWORD and as a value add your Dexcom password.
    8. Find BRIDGE_SERVER and as a value add EU if you are in Europe or leave the default blank value to pull data from Dexcom US servers.
    9. Your settings are automatically saved.
    10. Exit Heroku and leave some time for Nightscout to collect the data.
    NOTE: There are more parameters to customize if possible but you have to manually add the respective parameters in HEROKU. More details on official Nightscout page: https://nightscout.github.io/nightscout/setup_variables/#bridge-share2nightscout-bridge

  5. Setup your new Nightscout site


    Your new Nightscout site is now live! We are not over yet. We have to edit some settings on the frontend.

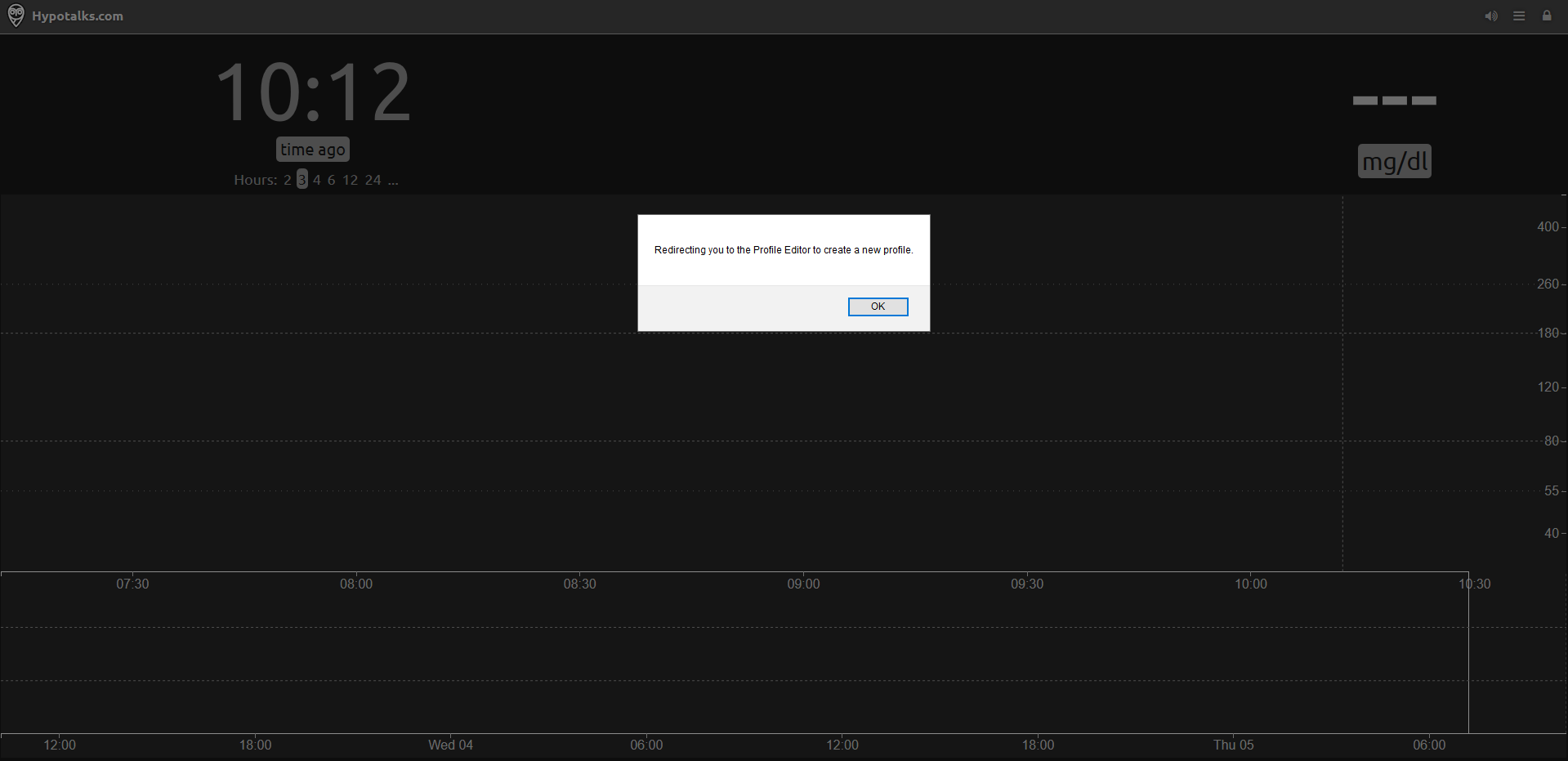

    a. Click OK on the pop up window “Redirecting you to the Profile Editor to create a new profile.”

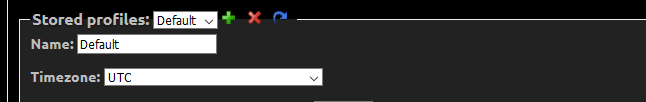

    Nightscout - Profile Editorb. Change the timezone

    Timezone: [Select your timezone]

    Nightscout - Profile Editor Timezone

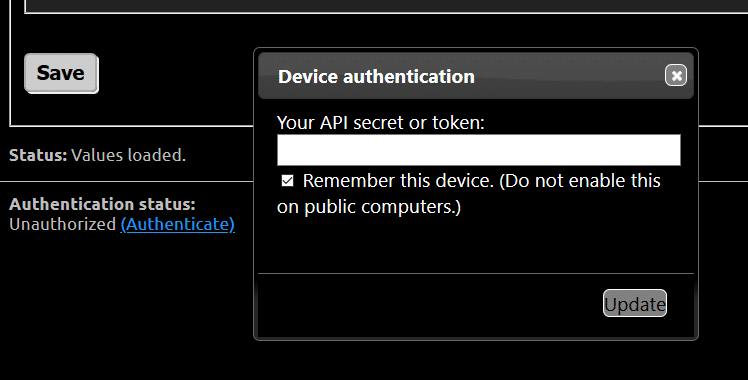

    c. Scroll down and click the Authenticate link. A Device Authentication pop up window will open. Fill in your API_SECRET you have used while setting up Heroku and then click the Update button.


    Nightscout - Authentication API_SECRET
    NOTE: If the API_SECRET you have entered is correct (and not misspelled for example) you will now see the message Admin Authorized.

    Nightscout - Authentication API_SECRET success

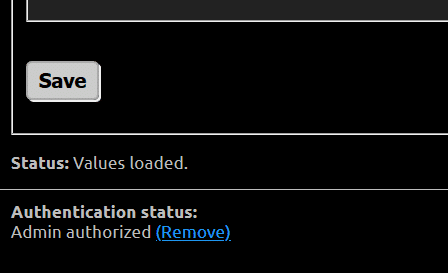

    d. Click Save button. In the top right part of your Nightscout site you will now see the message Status: SUCCESS which means that the settings were successfully saved.

  6. Setup your CGM data uploader


    Your Nightscout site is now online. You should now configure your uploader in order to push the CGM data to Nightscout. There are multiple ways to achieve it depending the device you are using. Below you can see a very comprehensive diagram with almost all the ways that someone can upload his BG data to the Cloud.

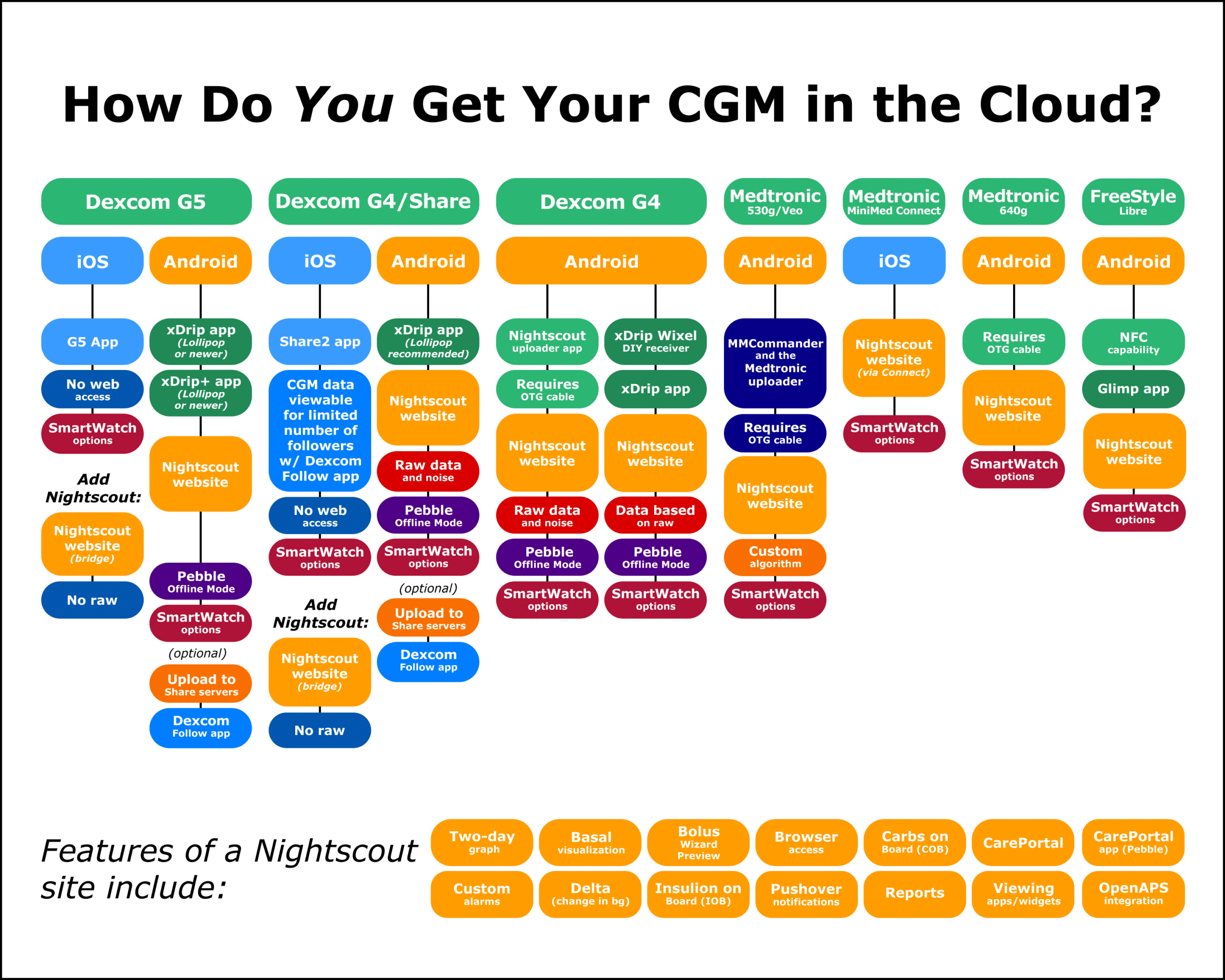

    Ways to add your CGM data to the cloud/nightscout.Ways to get your CGM data in the Cloud – Source: Nightscout.info

Detailed step-by-step guides will be published for each way someone can upload his Blood Glucose data in Nightscout or other tools like xDrip+, Spike etc.

You may also read: How can I update my Nightscout site to the latest version?

A final view of a successful Nightscout site set up should look like this:

Nightscout site - Medtronic 640G insulin pump
My son’s Nightscout site on Heroku.

The official Nightscout guide can be found here.

Do you still need help?

I have created a “Hypotalks” Discord server. I will do my best to support when time permits. Join the #Nightscout channel and drop a message.

The invitation link is: https://discord.gg/djkAv7uwYS

See you there!
